Semi-Finished Products

Pipes

01

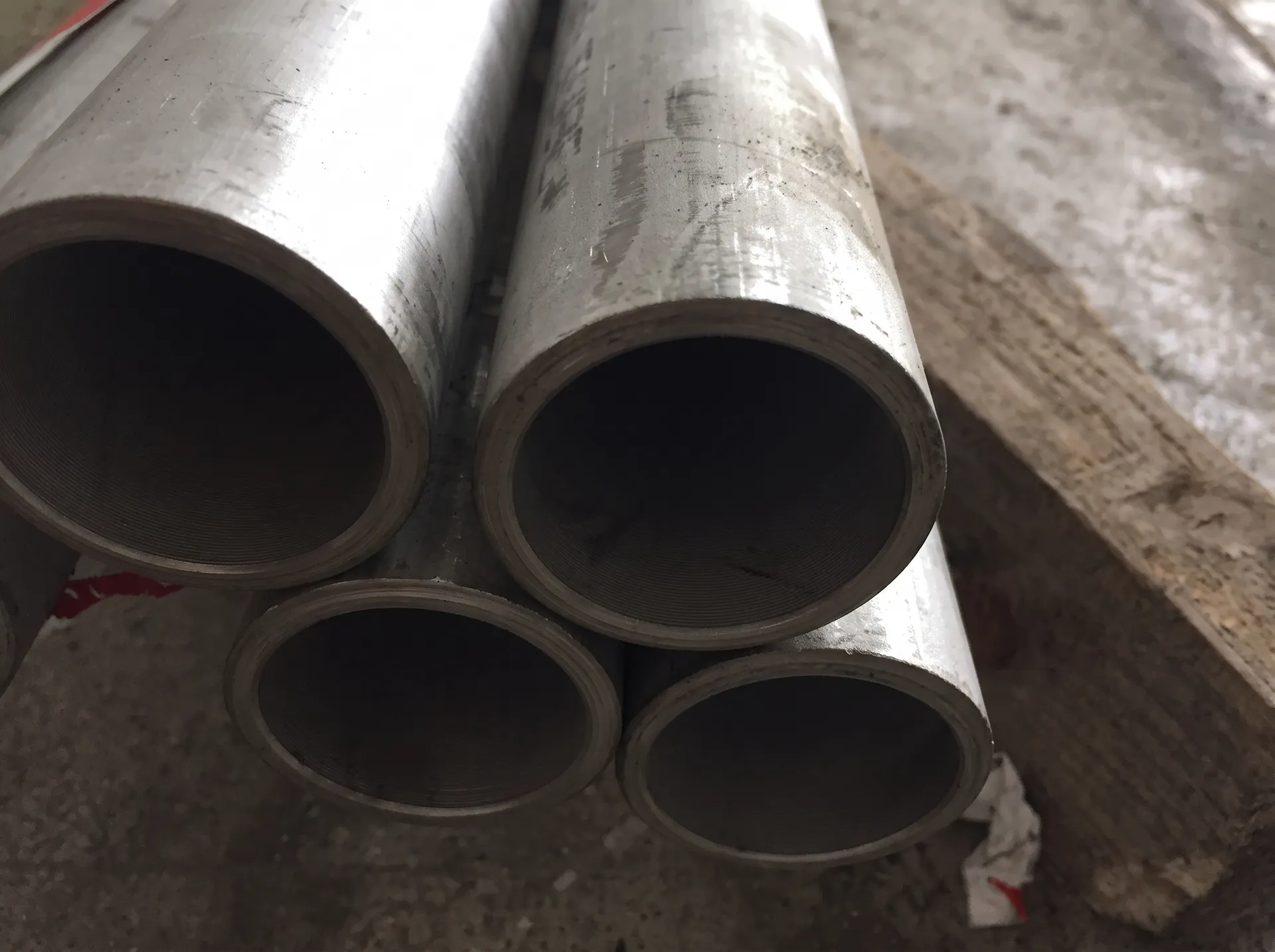

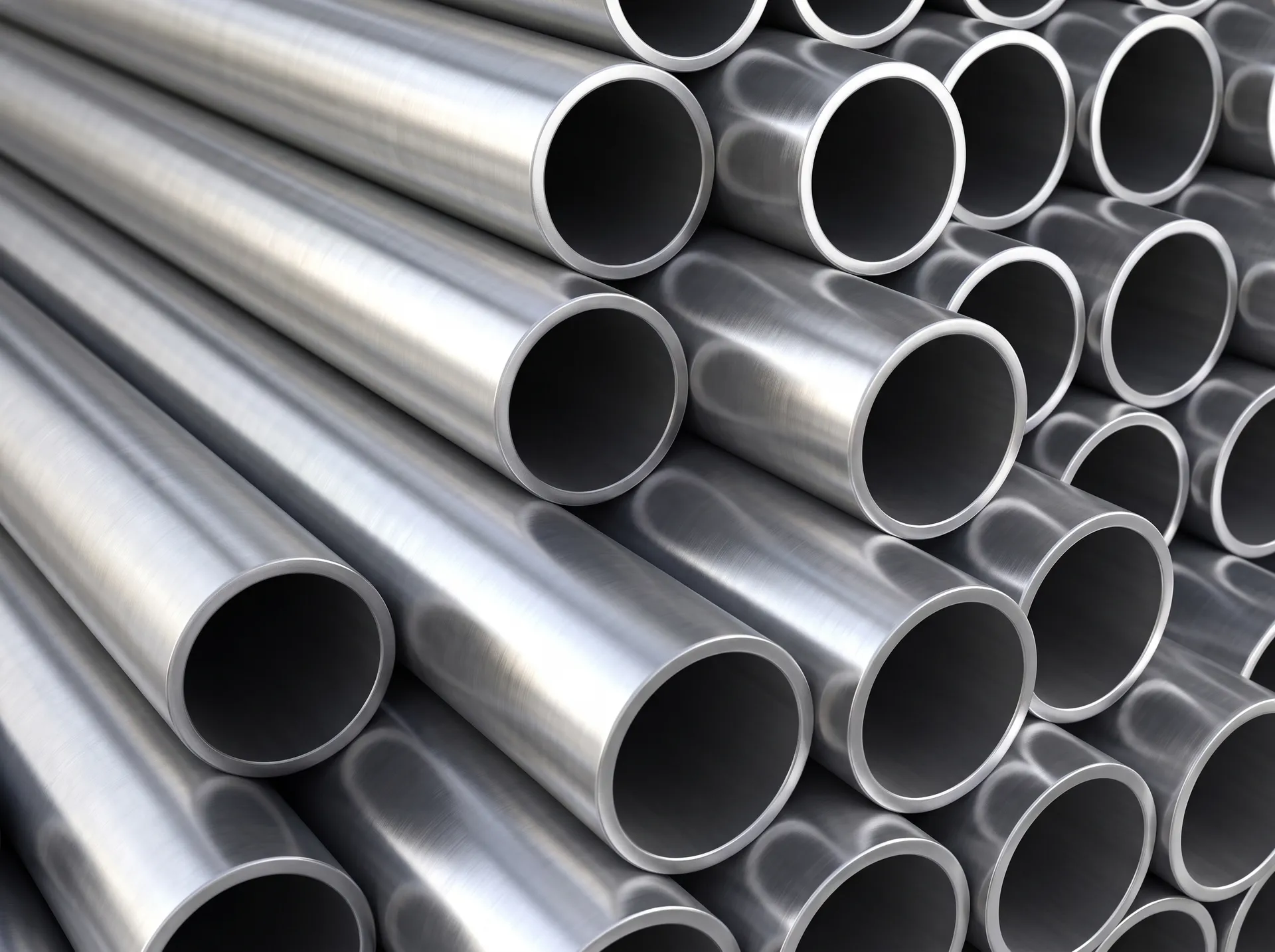

Seamless Pipes

ASTM	STEEL	UNS	WNR
ASTM A312	317LMN	S31726	1.4439
ASTM A312	309	S30900	1.4828
ASTM A312	309s	S30908	1.4833
ASTM A312	310	S31000	1.4841
ASTM A312	310s	S31008	1.4845
ASTM A312	904L	N08904	1.4539
ASTM A312	321H	S32109	1.4878
ASTM A312	316H
ASTM A312	347H	S34700	1.455
ASTM B789	DUPLEX	S32205	1.4462
ASTM B789	SUPERDUPLEX	S32750	1.441
ASTM B789	SUPERDUPLEX	S32760	1.4501
ASTM A312	SMO254	S31254	1.4547
B163	ALLOY 200	N02200	2.4066
B163	ALLOY 201	N02201	2.4068
B163	ALLOY 400	N04400	2.436
B167	ALLOY 600	N06600	2.4816
B167	ALLOY 601	N06601	2.4851
B444	ALLOY 625	N06625	2.4856
B163	ALLOY 800	N08800	1.4876
B163	ALLOY 800H	N08810	1.4958
B163	ALLOY 800HT	N08811	1.4959
B423	ALLOY 825	N08825	2.4858
B622	ALLOY C276	N10276	2.4819
B729	ALLOY 20	N08020	2.466

Standard size according ASME B36.19, ASME B36.10

Nominal Pipe Size	Outside diameter	Wall thickness
		SCH 5S	SCH 10S	SCH STD (40S)	SCH XS (80S)	SCH 160S	SCH XXS
1/4″	13.72	–	1.65	2.24	3.02	–	–
3/8″	17.15	–	1.65	2.31	3.2	–	–
1/2″	21.34	1.65	2.11	2.77	3.73	4.75	7.47
3/4″	26.67	1.65	2.11	2.87	3.91	5.54	7.82
1″	33.4	1.65	2.77	3.38	4.55	6.35	9.09
1 1/4“	42.16	1.65	2.77	3.56	4.85	6.35	9.7
1 1/2“	48.26	1.65	2.77	3.68	5.08	7.14	10.16
2″	60.33	1.65	2.77	3.91	5.54	8.71	11.07
2 1/2“	73.03	2.11	3.05	5.16	7.01	9.53	14.02
3″	88.9	2.11	3.05	5.49	7.62	11.13	15.24
3 1/2“	101.6	2.11	3.05	5.74	8.08	–	16.15
4″	114.3	2.11	3.05	6.02	8.56	13.49	17.12
5″	141.3	2.77	3.4	6.55	9.53	15.88	19.05
6″	168.28	2.77	3.4	7.11	10.97	18.24	21.95
8″	219.08	2.77	3.76	8.18	12.7	23.01	22.23
10″	273.05	3.4	4.19	9.27	12.7	28.58	25.4
12″	323.85	3.96	4.57	9.53	12.7	33.32	25.4
14″	355.6	3.96	4.78	9.53	12.7	35.71	–
16″	406.4	4.19	4.78	9.53	12.7	40.46	–
18″	457.2	4.19	4.78	9.53	12.7	45.24	–
20″	508	4.78	5.54	9.53	12.7	49.99	–
22″	558.8	4.78	5.54	9.53	12.7	53.97	–
24″	609.6	5.54	6.35	9.53	12.7	59.51	–

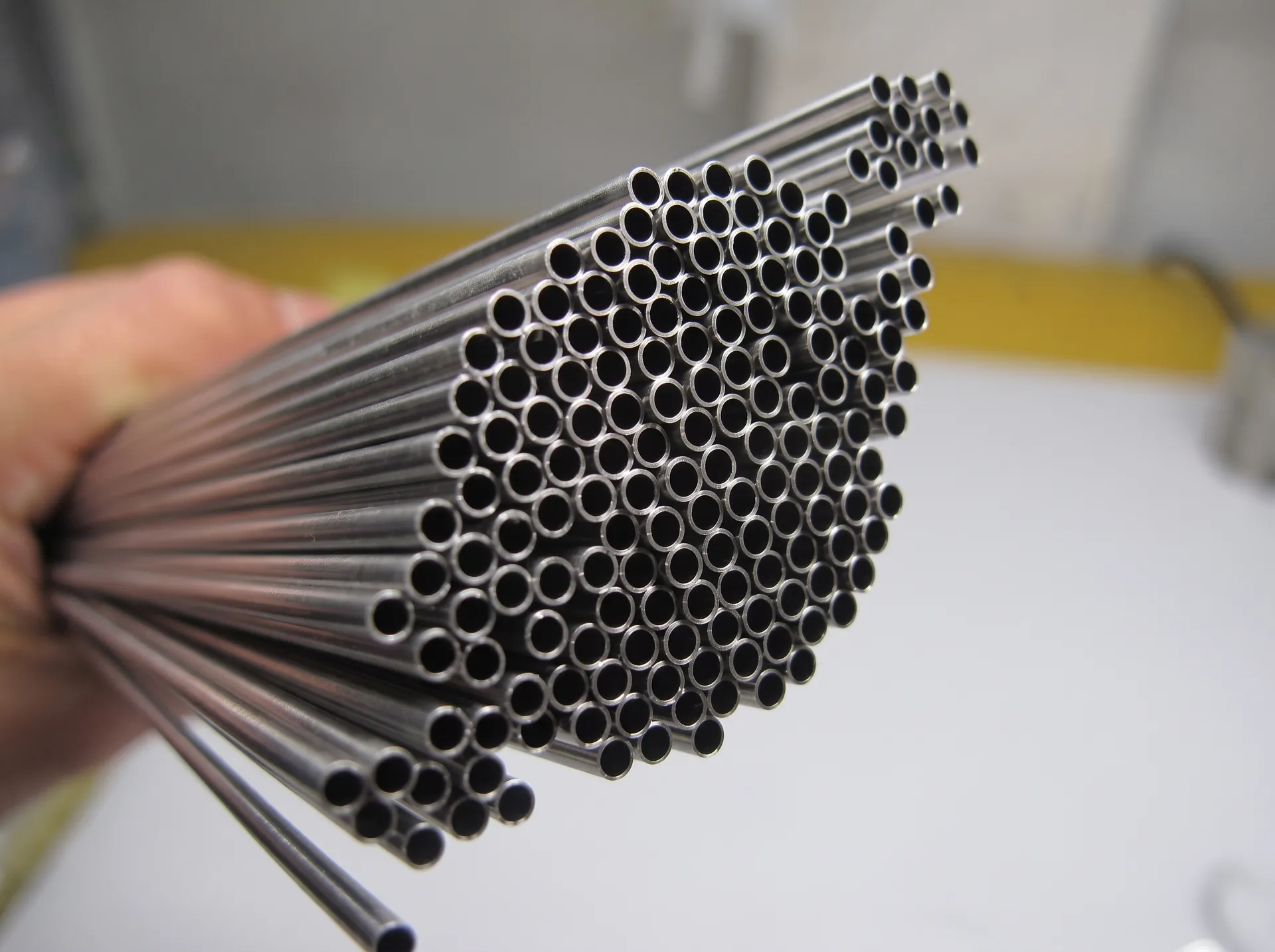

We can also provide from stock or on construction of seamless pipes, cold drawn and annealed, in the following degrees and sizes:

904L/NO8904 – 6MO/S31254 – UNS NO8028
UNS S31803 – UNS S32750 – UNS S32760
400 – 600 – 625 – 825 – C276

Outer Diameter		Wall Thickness
5.00 mm	x	0.50 mm
5.00 mm	x	1.00 mm
6.00 mm	x	0.50 mm
6.00 mm	x	1.00 mm
8.00 mm	x	1.00 mm
8.00 mm	x	1.50 mm
10.00 mm	x	1.00 mm
10.00 mm	x	1.50 mm
10.00 mm	x	2.00 mm
12.00 mm	x	1.00 mm
12.00 mm	x	1.50 mm
12.00 mm	x	2.00 mm
14.00 mm	x	2.00 mm
15.00 mm	x	1.50 mm
18.00 mm	x	2.00 mm
20.00 mm	x	2.00 mm
22.00 mm	x	1.00 mm
22.00 mm	x	2.00 mm
24.00 mm	x	2.00 mm
24.00 mm	x	4.00 mm
25.00 mm	x	2.00 mm
30.00 mm	x	2.50 mm
36.00 mm	x	3.00 mm
40.00 mm	x	2.50 mm
50.00 mm	x	2.50 mm
